While printing the parts an infill of 30%, wall thickness 2mm, best with no support (unless specified), use a brim for big parts to avoid warping.

You will need to print all these parts at a good resolution, make sure that the part is selected depending upon the camera choice and I have uploaded .stl files of two types so better once go through according to your requirements.

Parts to print -

1. 1x BackClaviHolder (add support)
2. 1x BackCoverBottomLeft (add support)
3. 1x BackCoverBottomRight (add support)
4. 1x BackCoverBottomMid (add support)
5. 1x BackCoverTopLeft (add support)
6. 1x BackCoverTopRight (add support)
7. 1x BackCoverTopMid (add support)
8. 1x BackCoverLowLeft (add support)
9. 1x BackCoverLowRight (add support)
10. 1x BackHipsLeft (add support)
11. 1x BackHipsRight (add support)
12. 1x BackHipsMid (add support)
13. 1x BackHolderCenterLeft
14. 1x BackHolderCenterRight
15. 1x BackHolderCenter
16. 1x BackHolderLowLeft 17 .1x BackHolderLowRight 18 .1x BackSideHolderLeft
17. 1x BackSideHolderRight
18. 1x BatteryHolderLeft
19. 1x BatteryHolderRight
20. xBatteryPusher
21. 1x BackDoorRight
22. 1x BackDoorLeft
23. 2x SMPS Holder (if not using battery, mirror the parts in cura or your favourite slicer sofrware)
24. 1xMiniPC Holder

note

You need to drill some holes with 2mm or 3mm drillbit to moount Arduino Uno Mount, Also you also need to drill holes fif you are using SMPS Holder Todo AddPics

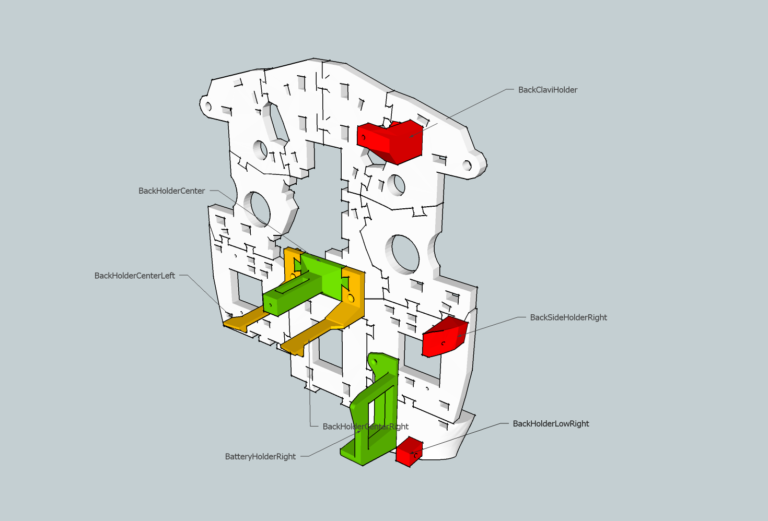

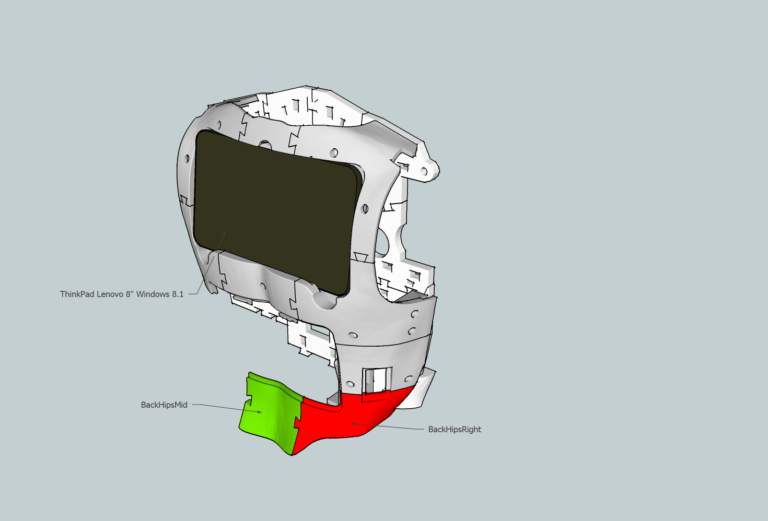

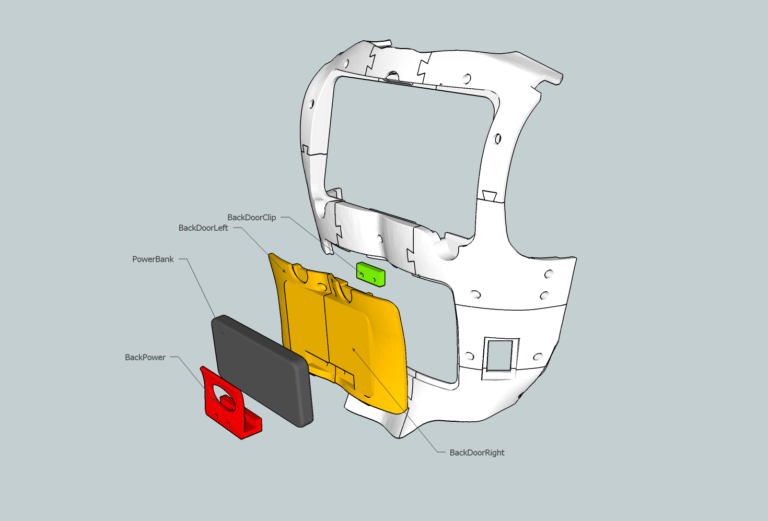

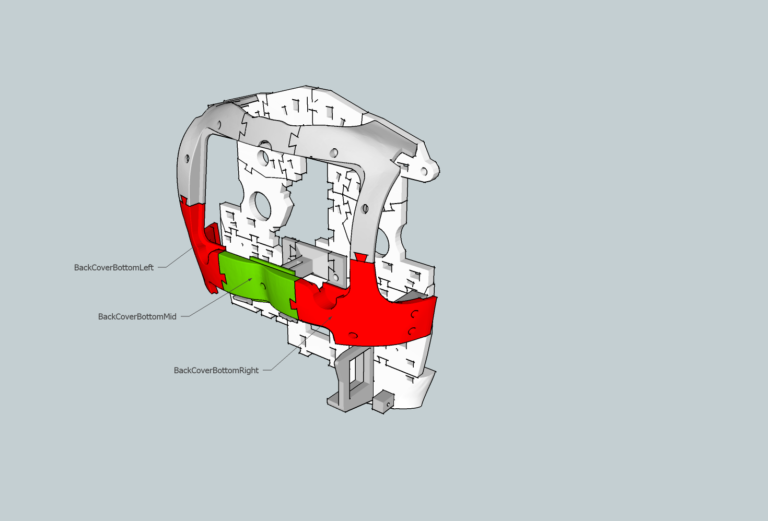

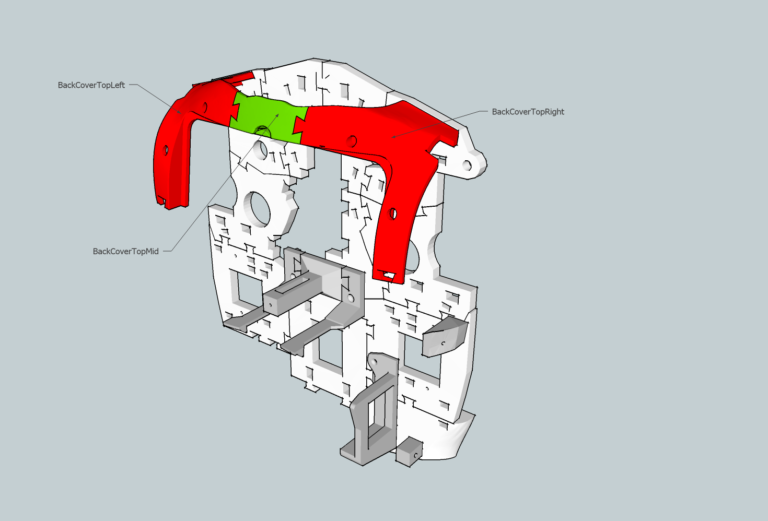

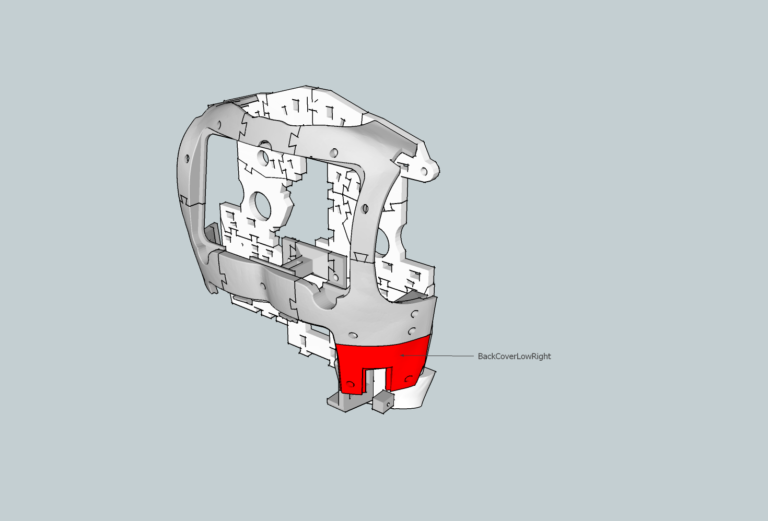

Please refer the diagram below for other parts to print. I believe assembly is fairly simplified here:
